能量色散型X熒光光譜儀貴金屬分析專家

PM-350

能量色散型X熒光光譜儀原理

由高能X射線激發原子電子層，使得原子核外電子發生躍遷，造成二次X射線能量釋放，因不同的元素釋放的能量具有不同特性，探測系統測量這些能量和數量，從而計算元素含量。

Principles of the energy dispersion-type

X fluorescence spectrometer

The atomic electron layer is excited by high-energy X-rays, making the electron transition outside the nucleus, causing a secondary X-ray energy release. Because the energy released by different elements has different characteristics, the detection system measures these energy and quantity, and thus calculates the element content.

主要組成部件

高壓-光管-探測器與前放-主放-DPP-控制模

塊-通信模塊-顯示系統等

Main components

High pressure-light tube-detector with Front amplifier circuit- DPP - control mode-

Block-Communication Module-Display system etc

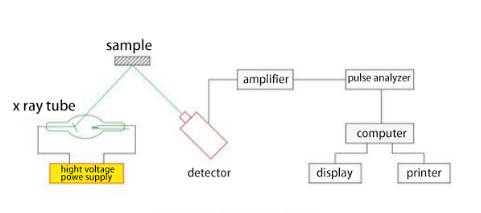

 X-ray should analyzer structure block diagram

對貴金屬進行分析和克拉級別鑒定

目前使用XRF分析儀對貴金屬進行化學成份分析及純度成色判斷已經成為一種廣泛應用、極受歡迎，并且有國家標準的支持，且性能可靠的方法。與火花試金法和化學試劑測試法相比，使用XRF對貴金屬進行分析是一種更迅速、更經濟的多元素檢測方法。

JPSPEC佳譜儀器生產的PM-350 XRF分析儀為用戶提供了一種操作方便，且性價比極高的檢測技術:無需將檢測工具探入到被測樣件的材料中，也不會損壞被測樣件，即可獲得樣件的合金化學成份信息，判斷出樣件的克拉等級。無論您是購買黃金等貴金屬，還是出售或生產珠寶，或是制造金屬，抑或是回收廢舊金屬，您都需要掌握一種可以極為精確地判斷克拉等級以及其它貴金屬與非貴金屬含量的快速方法，在第一時間， 以有效地控制產品質量，制定合理的價格。

PM-350分析儀可以迅速得到各種類型樣品精確的分析結果。

Us metals were analyzed and carat -level identified

At present, the use of XRF analyzer to conduct the method of chemical composition analysis and purity color determination of precious metals has become a widely used, very popular, and supported by national standards, and reliable performance.Analysis of precious metals using XRF is a more rapid and more efficient multi-element detection method than the spark gold test method and the chemical reagent test method.

The PM-350 XRF analyzer produced by JPSPEC provides the user with a convenient and cost-effective detection technology: without detecting the detection tool into the material of the tested sample, you can obtain the alloy chemical component information of the sample and determine the carat level of the sample.Whether you buy gold and other precious metals, or sell or produce jewelry, or make metal, or recycling waste metal, you need to master a can very accurately judge the carat level and other precious metals and non-precious metals content fast method, in the first time, in order to effectively control the product quality, set a reasonable price.

The PM-350 analyzer quickly yields accurate analysis results for various types of samples.

PM-350分析的優勢和特點

。超高分辨率、超清攝像頭、超便捷操作、超快檢測速度、超人性化界面

。易于使用，一鍵操作，即可獲得克拉等級及組成成份的分析結果

。有助于識別鍍金樣件的創新型功能

。機身結構小巧結實，外形十分漂亮，適合放置于陳列展室

。按下按鈕的數秒之內，即可得到有關樣件的化學成份和克拉等級的精確結果

。使用PC機和軟件，可以迅速方便地制作樣件的檢驗結果證書

。用戶通過攝像頭及艙內照明系統，可看到樣件測試位置，提升了用戶對測試信心

。PM-350分析儀測試數據可以下載和上傳網絡，檢測結果易于查看和分享

。有X射線防護鎖，只有在封閉狀態下才發射X射線，安全、可靠的保證客戶使用

Advantages and characteristics of the PM-350 analysis

. Ultra-high-resolution, ultra-clear camera, super-convenient operation, super-fast detection speed, super-humanized interface

. Easy to use, one-click operation, you can obtain the analysis results of the carat level and components

. Help to identify the innovative features of the gilt samples

. The body structure is small and strong, suitable for placement in the showroom

. Precise results on the sample chemical composition and the carat grade are obtained within seconds of button press

. The PC and software can be produced quickly and easily

. Through the camera and cabin lighting system, users can see the test position of the sample piece, improving users' confidence in the test

。The PM-350 Analyzer test data can be downloaded and uploaded on the network, and the detection results are easy to view and share

. There are X-ray protection lock, only in a closed state to launch X-ray, safe and reliable to ensure customer used

硬件性能及優勢

超高分辨率、超清攝像頭、超便捷操作

超快檢測速度、超人性化界面

超清攝像頭

光管電壓5KV - 50KV

高壓電源0 ~ 50KV Spellman(USA)

光管管流0μA~ 1000μA

濾光片可選擇多種定制切換

探測器Si-pin

分辦率Si-pin149土5eV

多道分析器JPSPEC-DPP

樣品腔尺寸310*280*60 ( mm)

測試時間30sec一100sec

Hardware performance and advantages

Ultra-high resolution, ultra-clear camera, super convenient operation

Ultra-fast detection speed, ultra-humanized interface

Ultra clear camera

Optical tube voltage is 5KV-50KV

High-voltage power supply of 0 ~ 50KV Spellman (USA)

Optical tube flow 0 A~ 1000 A

Filters can choose from a variety of custom switches

The detector is the Si-pin

Sub-operation rate of Si-pin 144 soil 5eV

Multichannel analyzer JPSPEC-DPP

Sample cavity size 310 * 280 * 60 (mm)

Test time was 30sec and one-100sec

儀器性能及配置

分析范圍1ppm to 100 %

精度RSD≤0.05% Au≥90%

測試樣品的物理狀態固體、粉末、液體

感興趣元素貴金屬Au, Ag, Pt, Pd, Ru, Rh, W, Os, Ir, etc.

基本金屬Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc.

儀器環境要求

環境溫度15° C~30° C

相對濕度35%一70%

電源要求AC 220V土5V, 50/60HZ

分析軟件FP定性定量分析軟件

外部尺寸380*372*362 ( mm)

重量29Kg

Instrument performance and configuration

Analysis range of 1ppm to 100%

Precision RSD 0.05% Au 90%

Test the sample for its physical state, solid, powder, and liquid

Elements of interest are the precious metals Au, Ag, Pt, Pd, Ru, Rh, W, Os, Ir, etc.

Basic Metal Cr, Mn, Fe, Co, Ni, Cu, Zn, Cd, Sn, Pb, etc.

Instrument environment requirements

The ambient temperature is 15°C~30°C

Relative humidity is 35% and one to 70%

Power supply requires AC 220V soil 5V, 50 / 60HZ

Analytical Software FP Qualitative Quantitative Analysis software

External Dimensions 380 * 372 * 362 (mm)

weight 29Kg

應用領域：

珠寶制造

回收行業

典當行/精煉行業

質量技術監督局

現金黃金兌換

零售行業

Applications, fields:

Jewelry manufacturing

Recycling industry

Pawnshop / refining industry

The Bureau of Quality and Technical Supervision

Cash gold exchange

Retail industry

應用和示例

測試貴金屬Au、Pt. Ag. Pd精準的分析

現場對黃金進行克拉級別鑒定: 0-24 kt

核查廢舊金屬中的金含量對雜質材料進行辨別

辨別未知金屬

Applications and examples

Testing of the precious metals Au, Pt.Ag.Accurate analysis of the Pd

Check gold on site: 0-24 kt

Check the gold content in the waste metal to identify the impurity materials

Identify unknown metals

成功案例：

successful case:
